Meters Window

Meters Window#

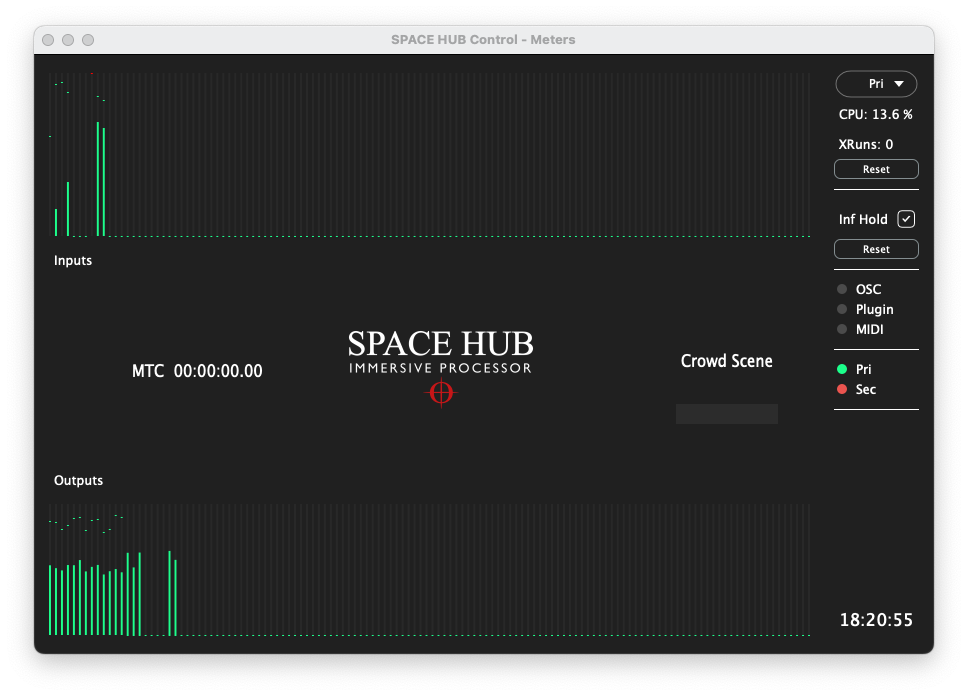

In order to get a more detailed view of all Input and Output levels with both Peak and RMS, a separate Meters Window can be opened. You can select it from the menu icon at the top right of the main window.

Object View

To the right of this window, you will see:

  • XRuns Counts buffer over-/under-runs within the SPACE HUB Processor. If you are using SPACE HUB Studio and are experiencing XRuns regularly, please consider increasing your Audio Buffer Size thus decreasing the CPU load on your machine and ensuring your hardware can process all audio samples in time for playout.

  • Reset Resets the XRuns counter

  • Inf Hold Sets the Peak Hold time for the meters to infinite hold, to permanently display the absolute peak value.

  • Reset - resets the peak hold value

  • OSC Plugin MIDI Tracker Activity indicators for OSC, Plugin, MIDI and Tracker control messaging. Click the Tracker indicator to open a popup menu and select Enable / Disable Tracker to temporarily pause tracking. If tracking is disabled, the indicator will be yellow.

  • Pri Connection status of Primary SPACE HUB Processor

  • Sec Connection status of optional redundant Secondary SPACE HUB Processor

  • Clock The clock at the bottom right of the Meters window shows System Time

In the center of the Meters Window there are two additional displays left and right of the SPACE HUB logo:

  • MTC Incoming MIDI Time Code position

  • Snapshot To the right of the SPACE HUB logo there is a display for the current Snapshot and a Snapshot Load Progress bar for Snapshots with a Fade time
